如何扩展你的模型（6）：在 TPU 上训练 LLaMA 3

Our goal in this section is to apply results from the previous section to a very practical problem: training the LLaMA 3 family (herd) of models. Unlike the previous sections we want you to do a lot of this work yourself. For this reason, we’ve hidden the answers to each section so you can try to answer it first. Try grabbing a pen and doing it by hand!

What does LLaMA 3 look like?

The LLaMA-3 model family^[llama3] includes 3 main models: LLaMA 3 8B, 70B, and 405B. We’ll mostly focus on 70B, and leave 8B and 405B for you to explore in the problem section at the end. Here’s the architecture for LLaMA 3-70B, taken from the LLaMA HuggingFace page.

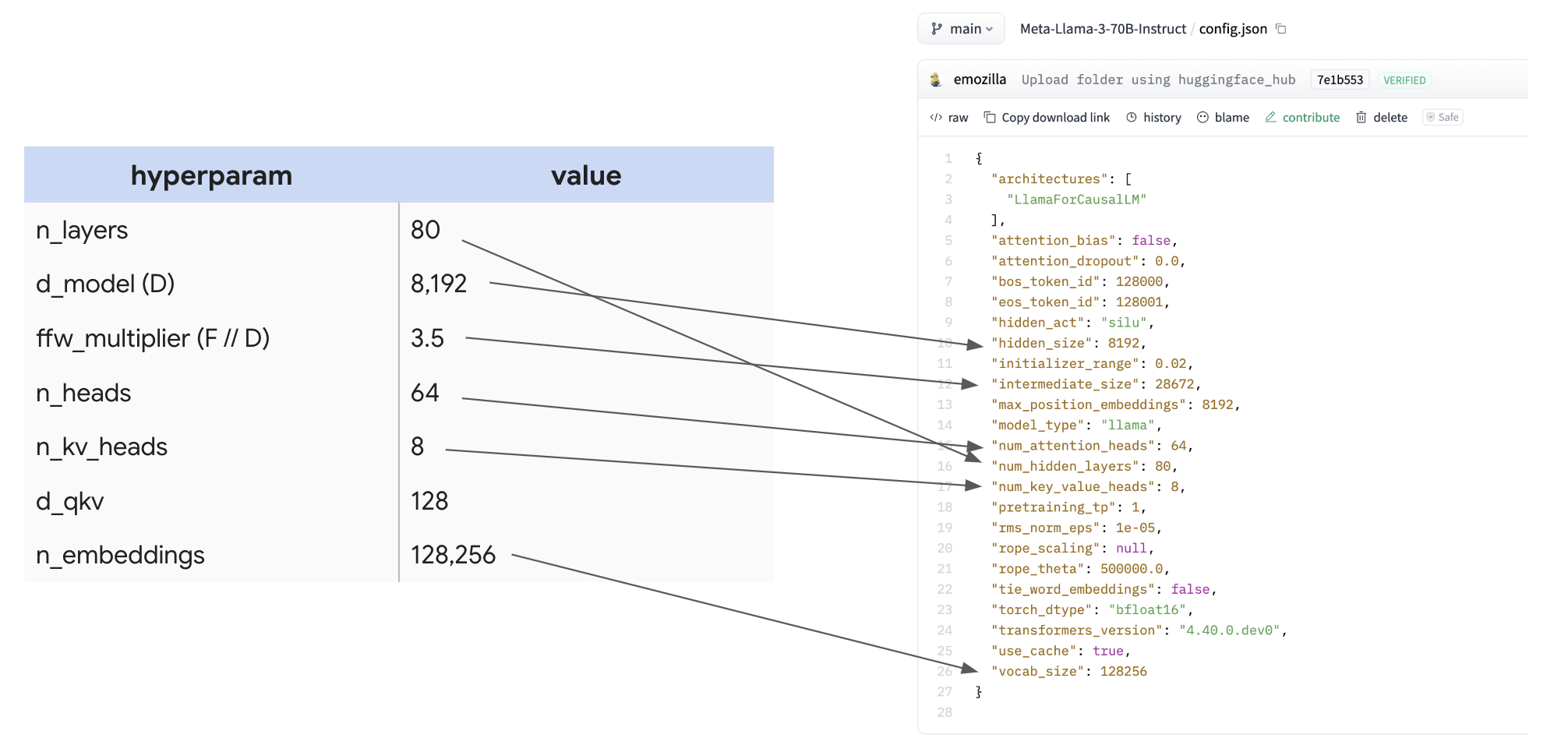

To highlight how easy this is to find, here’s the config itself, along with a mapping:

It’s useful to make a big table with these numbers for many different open-source LLMs, so you can quickly compare the design decisions they’ve made.

Counting parameters and FLOPs

Question: From this table, can we calculate the LLaMA 3-70B parameter count? 🤫 Let’s apply the content of Section 4 and see if we can get 70B!

That’s great! We get the number we expect. You’ll notice as expected that the FFW parameters totally dominate the overall parameter count, although attention is non-trivial.

Takeaway: The 3 big weight matrices in the MLP block are so much larger than all the other arrays in the Transformer that we can typically almost ignore all other parameters when reasoning about model memory or FLOPs. For LLaMA 3-70B, they represent 56B of 70B parameters.

Let’s look at FLOPs now! Remember the general rules for training from Section 4.

Question: How many FLOPs does LLaMA-3 perform per token per training step? This helps us determine how expensive the whole training process will be.

Answer: As shown in Section 4, we do roughly $$6 \cdot \text{param count}$$ FLOPs per token, so here that’s roughly 6 * 70e9 = 4.2e11 FLOPs / token. That’s about half a TFLOP per token per step. Assuming we’re compute-bound, this should take roughly 4.2e11 / 4.59E+14 = 1ms on a single TPU v5p chip, assuming perfect FLOPs utilization.

Question: LLaMA 3 was trained for about 15 trillion tokens. How many FLOPs is that total?

Answer: That’s easy, it’s just 4.2e11 * 15e12 = 6.3e24 FLOPs total. 6.3 yottaFLOPs. That’s a lot! On a single TPU this would take 6.3e24 / 4.59E+14 = 435 years. That’s also a lot!

Question: Let’s say we wanted to train on a full TPU v5p pod with 16x20x28 = 8960 chips. How long would this take to train at 40% MFU in bfloat16, assuming we are compute-bound?

Answer: We know that each TPU v5p can perform 4.59e14 FLOPs / second. At 40% MFU, this will take about T = 6.3e24 / (8960 * 4.59e14 * 0.4) = 3.8e6 seconds. This is about 44 days! That’s fairly reasonable, assuming we can actually achieve 40% MFU.

Question: LLaMA 3-70B was pretrained with a batch size of about 4M tokens. How many TPUs do we need at minimum to train with this batch size? You can assume bfloat16 parameters and float32 optimizer state, and that you checkpoint activations 2 times per layer (at the beginning of the layer and after attention).

Answer: This question is primarily asking about memory usage, since that’s the only strict constraint on available compute. During training, we have three primary uses of HBM: model parameters, optimizer state, and activation checkpoints. If we assume bfloat16 weights, float32 optimizer state, and a very conservative activation checkpointing scheme (2 times per layer), we have:

| Params | 2 * 70GB | ~140GB | | Optimizer State | 8 * 70GB | ~560GB | | Activation Checkpoints | 2 * 8192 * 4e6 * 2 * 80 | ~10.5TB | | Total | | ~11.2TB |

The total here is about 11.2TB. You notice that activation checkpointing strongly dominates the memory picture, even with a very conservative checkpointing scheme. We could technically go to 1 checkpoint per layer, or do microbatching, but this is a reasonable picture. With these assumptions, since each TPU v5p has 96GB of HBM, we need 11.2e12 / 96e9 = 117 TPUs. That’s not very much actually!

Why wouldn’t we do this? Well, because it would take us 44 days * 8960 / 117 = 3369 days to train. That’s nearly ten years. That’s a lot. Still, this makes it clear that we’re using these large clusters not because we’re bound by memory but rather because we need the extra FLOPs. Also, since we’re checkpointing so infrequently, we’re doing close to 8ND FLOPs instead of 6ND.

Question: Under the same assumptions as the question above, if we use 8960 TPU v5p chips, how much memory will we use per-chip?

Answer: Our total memory is still about 11.2TB, so per-chip we’ll be using about 1.3GB per chip, which is basically nothing. If we did much more aggressive checkpointing, e.g. 12 checkpoints per layer, we’d still only be at 8GB per chip. We’re nowhere near being memory bound during training at these scales.

Takeaways: It is technically possible to train even very large models on very small topologies, with the caveat that they will likely take a long time. Being able to calculate the total FLOPs of a training run allows us to ballpark its training time by assuming a modest MFU and a known topology.

How to shard LLaMA 3-70B for training

Let’s stick to our setting from above and say we want to train LLaMA 3-70B with 4M token batch size (1024 sequences of length 4096 per batch) on a TPU v5p pod of 8960 chips. Let’s discuss what the best sharding strategy is for this model.

Question: Under the assumptions above, can we train our model with FSDP alone? To start, let’s say we can’t do any sequence/context parallelism. This should be the first idea you have, since it’s simple and will introduce no extra communication if it works.

Answer: This answer will be a little pedantic. As noted above, LLaMA 3-70B is initially trained with sequences of length 4K, so the batch size of 4M tokens gives us a sequence batch size of 1024. That means we can only really do pure data parallelism/FSDP up to 1024 chips because that’s how many sequences we have to do data parallelism over. So the answer in the simple sense of “fully data parallelism with no extra communication” is no. The next question will answer a slightly less pedantic version of this.

Question: Let’s relax the requirement of not doing any sequence sharding. If we allow ourselves to do FSDP over both the batch and sequence axes, can we train LLaMA 3-70B with only FSDP on 8960 chips?

Answer: Now that we’re allowing ourselves to do sequence/context parallelism as well, we can scale up way more. First let’s calculate our per-device batch size. If we do 8960-way FSDP, we end with a per-TPU batch size of 4 * 1024 * 1024 / 8960 = 468 tokens. We know from the previous section that we become ICI-bound by FSDP when $$\text{per device batch size} < 2550 / M_X$$. Since we can dedicate 3 axes here with a full 3D pod, this would give us a lower bound of 850, which we’re well below. So the answer is no, even with 3 axes. We would be solidly communication-bound.

Question: Now let’s look at mixed tensor parallelism and FSDP. Does there exist some combination that lets us remain compute-bound? What amount of FSDP and tensor parallelism should we do if so?

Answer: First let’s check to see if this will even fit. We know that we’ll be comms-bound if our per-chip batch size is less than $2550^2 / 2F = 113$. As we saw above, we’re slightly above this. So that’s great! Now to pick the optimal amount of FSDP, we can use the formula

Rounding to a reasonable multiple of 2, that gives us roughly 2048-way FSDP and 4-way tensor parallelism. That should work well!

Takeaways: We can train LLaMA-3 with a 4M token batch size on a full TPU v5p pod with a mixture of data parallelism (1024-way), sequence parallelism (2-way), and tensor parallelism (4-way) without being communication-bound. We will be comms-bound if we try to do pure FSDP or FSDP + sequence parallelism. The equations we’ve cooked up in the previous section are very practical.

Worked Problems

Question 1 [Scaling LLaMA 70B to more chips]: say we want to train LLaMA 3-70B on 4 pods with the same batch size. What parallelism scheme would we use? Would we be compute or communication bound? Roughly how long would it take to train? Make sure to use the correct roofline bound.

Question 2 [LLaMA 405B]:

(a) Using the LLaMA 3-405B config (a gated model, so you may need to log in and request access to view it), write a table with all the key hyperparameters as above. How many total parameters does this model have? How many FLOPs per training step? How many FLOPs do we perform if we train for 15T tokens?

(b) Assume we want to train on 8 TPU v5p pods. What parallelism scheme would we use? How long would training take? Would we be compute or comms bound?

That’s all for Section 6. For Section 7, about Transformer inference, click here.
