用 Opus 5.5 搭动态设计工作室（三）：seek(t) 引擎、弹簧与配乐

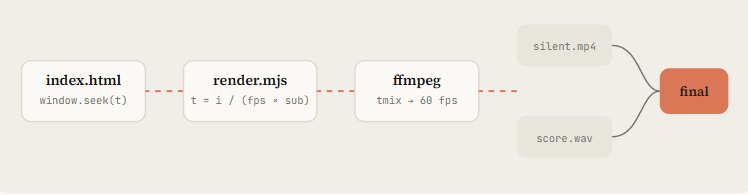

Figure: index.html (window.seek(t)) → render.mjs → ffmpeg (tmix → 60 fps) → silent.mp4 + score.wav → final

<style>html,body{margin:0;background:#141413}canvas{display:block}</style>
<canvas id="c" width="1080" height="1920"></canvas>
<script>
const W = 1080, H = 1920, DUR = 15;
const g = document.getElementById('c').getContext('2d');
const clamp = (x, a = 0, b = 1) => Math.min(b, Math.max(a, x));

// Closed-form damped spring, 0 → 1. Pure function of time (step 08 explains it).
function spring(t, k = 170, d = 26) {
  if (t <= 0) return 0;
  const w0 = Math.sqrt(k), z = d / (2 * w0);
  if (z < 1) {
    const wd = w0 * Math.sqrt(1 - z * z);
    return 1 - Math.exp(-z * w0 * t) * (Math.cos(wd * t) + (z * w0 / wd) * Math.sin(wd * t));
  }
  return 1 - Math.exp(-w0 * t) * (1 + w0 * t);      // z >= 1 treated as critical
}

// Seeded noise, never Math.random: the render must be identical every run
function rng(seed) { return () => { seed |= 0; seed = seed + 0x6D2B79F5 | 0;
  let t = Math.imul(seed ^ seed >>> 15, 1 | seed);
  t = t + Math.imul(t ^ t >>> 7, 61 | t) ^ t; return ((t ^ t >>> 14) >>> 0) / 4294967296; }; }

const SCENES = [
  { from: 0, to: 3, draw(t) {                        // kinetic title
      const s = spring(t - 0.1, 220, 22);
      g.save(); g.translate(W / 2, H / 2); g.scale(0.6 + 0.4 * s, 0.6 + 0.4 * s);
      g.globalAlpha = clamp(t * 4);
      g.fillStyle = '#F0EEE6'; g.font = '700 190px "Source Serif 4", serif';
      g.textAlign = 'center'; g.fillText('MOTION', 0, 0);
      g.fillStyle = '#D97757'; g.fillRect(-320 * s, 50, 640 * s, 18);
      g.restore();
  }},
  { from: 3, to: 6, draw(t) {                        // grid of squares on a stagger
      const r = rng(7);
      for (let i = 0; i < 48; i++) {
        const x = (i % 6) * 170 + 115, y = Math.floor(i / 6) * 170 + 360;
        const s = spring(t - i * 0.03 - r() * 0.1, 260, 20);
        g.fillStyle = i % 7 ? '#F0EEE6' : '#D97757';
        g.fillRect(x - 60 * s, y - 60 * s, 120 * s, 120 * s);
      }
  }},
  // ... more scenes: Opus appends here, one object per shot
];

function draw(t) {
  g.fillStyle = '#141413'; g.fillRect(0, 0, W, H);
  for (const s of SCENES) if (t >= s.from && t < s.to) s.draw(t - s.from);
}
window.seek = (t) => { draw(t); return true; };

// Live preview in a normal browser, off during headless render
if (!navigator.webdriver) {
  const t0 = performance.now();
  (function loop() { draw(((performance.now() - t0) / 1000) % DUR); requestAnimationFrame(loop); })();
}
</script>

// node render.mjs --fps 60 --dur 15 --sub 4
import { chromium } from 'playwright';
import { spawn } from 'node:child_process';
import { mkdirSync } from 'node:fs';

const arg = (k, d) => { const i = process.argv.indexOf('--' + k); return i > 0 ? Number(process.argv[i + 1]) : d; };
const FPS = arg('fps', 60), DUR = arg('dur', 15), SUB = arg('sub', 4);
mkdirSync('out', { recursive: true });

const browser = await chromium.launch();
const page = await browser.newPage({ viewport: { width: 1080, height: 1920 }, deviceScaleFactor: 1 });
await page.goto('file://' + process.cwd() + '/index.html');
await page.evaluate(() => document.fonts.ready);       // canvas text needs loaded fonts

// tmix averages SUB consecutive subframes; select keeps the last of each group
const vf = `tmix=frames=${SUB},select='eq(mod(n\\,${SUB})\\,${SUB - 1})',setpts=N/${FPS}/TB`;
const ff = spawn('ffmpeg', ['-y', '-f', 'image2pipe', '-framerate', String(FPS * SUB), '-i', '-',
  '-vf', vf, '-r', String(FPS), '-c:v', 'libx264', '-crf', '16', '-pix_fmt', 'yuv420p', 'out/silent.mp4'],
  { stdio: ['pipe', 'inherit', 'inherit'] });

const total = Math.round(DUR * FPS * SUB);
for (let i = 0; i < total; i++) {
  await page.evaluate((t) => window.seek(t), i / (FPS * SUB));
  const png = await page.locator('#c').screenshot({ type: 'png' });
  if (!ff.stdin.write(png)) await new Promise((r) => ff.stdin.once('drain', r));
  if (i % (FPS * SUB) === 0) console.log(`rendered ${i / (FPS * SUB)}s / ${DUR}s`);
}
ff.stdin.end();
await new Promise((r) => ff.on('close', r));
await browser.close();

# Contact sheet: 2 frames per second, 6 across
ffmpeg -i out/final.mp4 -vf "fps=2,scale=270:-1,tile=6x5" -frames:v 1 out/contact.png

# Strip: 12 consecutive frames around a fast action at 4.2s (catch pops and overlaps)
ffmpeg -ss 4.1 -i out/final.mp4 -vf "scale=320:-1,tile=12x1" -frames:v 1 out/strip.png

# Phone test: how it reads at 360 px wide
ffmpeg -i out/final.mp4 -vf "fps=1,scale=360:-1,tile=5x3" -frames:v 1 out/phone.png

# Loop check: play it twice back to back and watch the seam
ffmpeg -stream_loop 1 -i out/final.mp4 -c copy out/loop_check.mp4

# Determinism check: frame 300 rendered twice must hash the same
node render.mjs --dur 5 --fps 60 --sub 1 && md5 out/silent.mp4   # run twice, compare

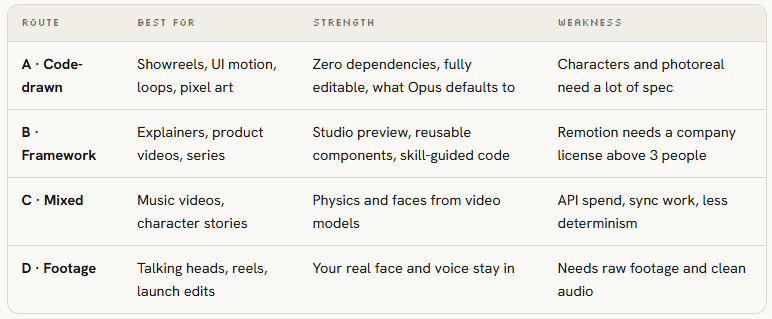

Figure: Route comparison — A code-drawn / B framework / C mixed / D footage: best for, strength, weakness

# Remotion (React): best for series, templates, data-driven videos
npx create-video@latest launch-film && cd launch-film
npx skills add remotion-dev/skills
claude
> /remotion-create a 20s 9:16 launch film for [PRODUCT], springs only, one accent color
npx remotion studio                 # live timeline preview
npx remotion render Main out/launch.mp4

# HyperFrames (HTML + GSAP): best when you think in web pages
npx hyperframes init my-video && cd my-video
npx hyperframes skills update
claude
> Using /hyperframes, turn ./notes.md into a 45-second pitch video with kinetic captions
npx hyperframes preview && npx hyperframes render

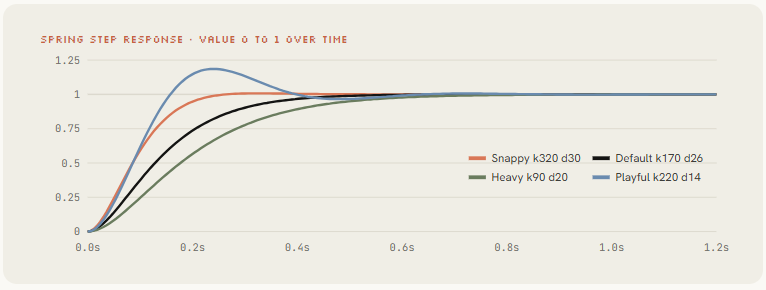

Figure: Spring step response (0→1) — Snappy / Playful / Default / Heavy presets (k, d)

// keys: [[time, value], ...] sorted by time. Returns the value at t.
export function track(t, keys, k = 170, d = 26) {
  let v = keys[0][1];
  for (let i = 1; i < keys.length; i++)
    v += (keys[i][1] - keys[i - 1][1]) * spring(t - keys[i][0], k, d);
  return v;
}

// A tab indicator that stretches: leading edge is stiffer than trailing edge
export function indicator(t, stops) {             // stops: [[time, x], ...]
  const lead  = track(t, stops, 320, 30);
  const trail = track(t, stops, 140, 22);
  return { left: Math.min(lead, trail), right: Math.max(lead, trail) + 120 };
}

// Text inside a morphing box: in after the morph starts, out before the next one
export function swapAlpha(t, tIn, tOut) {
  return Math.min(clamp((t - tIn - 0.08) / 0.12), clamp((tOut - 0.1 - t) / 0.1));
}

// Seamless loop: pin the last frame to the first
export const loopT = (t, dur) => ((t % dur) + dur) % dur;

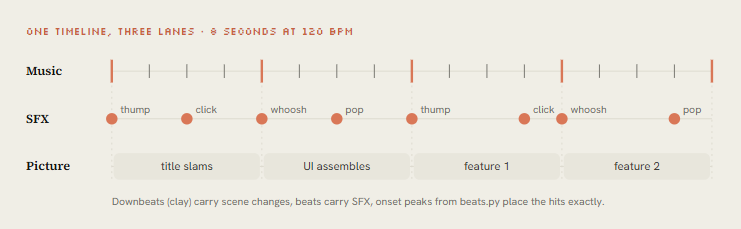

Figure: One timeline, three lanes · 8 seconds at 120 BPM — downbeats carry scene changes, beats carry SFX, onset peaks from beats.py place the hits

# python beats.py song.wav > beats.json   (the animation reads this file)
import sys, json, numpy as np, librosa

y, sr = librosa.load(sys.argv[1], sr=None, mono=True)
tempo, frames = librosa.beat.beat_track(y=y, sr=sr, units="frames")
beats = librosa.frames_to_time(frames, sr=sr).round(3).tolist()

onset = librosa.onset.onset_strength(y=y, sr=sr)
peaks = librosa.util.peak_pick(onset, pre_max=3, post_max=3, pre_avg=3,
                               post_avg=5, delta=0.5, wait=10)
json.dump({
    "bpm": float(np.atleast_1d(tempo)[0]),
    "beats": beats,                                   # state changes go here
    "downbeats": beats[::4],                          # big moments go here
    "hits": librosa.frames_to_time(peaks, sr=sr).round(3).tolist(),  # SFX go here
}, sys.stdout, indent=1)
